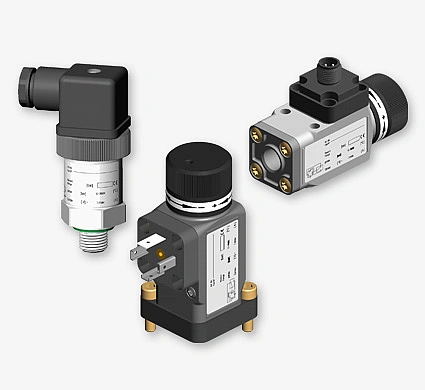

Mechanical pressure switch MDS
- Robust and compact unit
- adjustable switch point
- high degree of accuracy
- max. operating pressure up to 350 bars / 5076 psi (others upon request)
- electromechanical signal converter
- M12 as well as M3 plug connector as per DIN EN 175301-803
- Changeover function
- long service life
Monitoring the oil pressure is essential in hydraulic systems and oil supply systems. The measurement of maximum or minimum pressure has a direct effect on the safety of the system, the functionality or process reliability, just to name a few examples.
It is important to monitor both process-related pressure ranges as well as safety shutdowns, load limits or simply to determine if the lubricating pressure is adequate.
Mechanical pressure switches MDS serve system pressure monitoring. They are available with adjustable switch points.
- DocumentsTo download, simply select the respective documents and click "My Downloads" above.
Data sheets
IO-Link Device Description
Quick Guide
- Certificates & approvalsTo download, simply select the respective documents and click "My Downloads" above.
Certificates & approvals
- Contact Person
Datenblatt Mechanische Druckschalter MDS, PDF (748 KB)
Data sheet MDS Mechanical Pressure Switch, PDF (746 KB)
Data sheet MDS Mechanical Pressure Switch, PDF (746 KB)
Feuille de données Interrupteur mécanique à pression MDS, PDF (748 KB)
Hoja de datos Presostatos mecánicos MDS, PDF (747 KB)
参数表 MDS 机械式压力开关, PDF (822 KB)
Brief Instructions MDS (multi-lingual), PDF (523 KB)
EU declaration of conformity /EU-Konformitätserklärung MDS KX130023, PDF (46 KB)
EAC Certifcate / ЕАЭС N RU Д-DE.НВ54.В.02758_20 (RU), PDF (704 KB)
