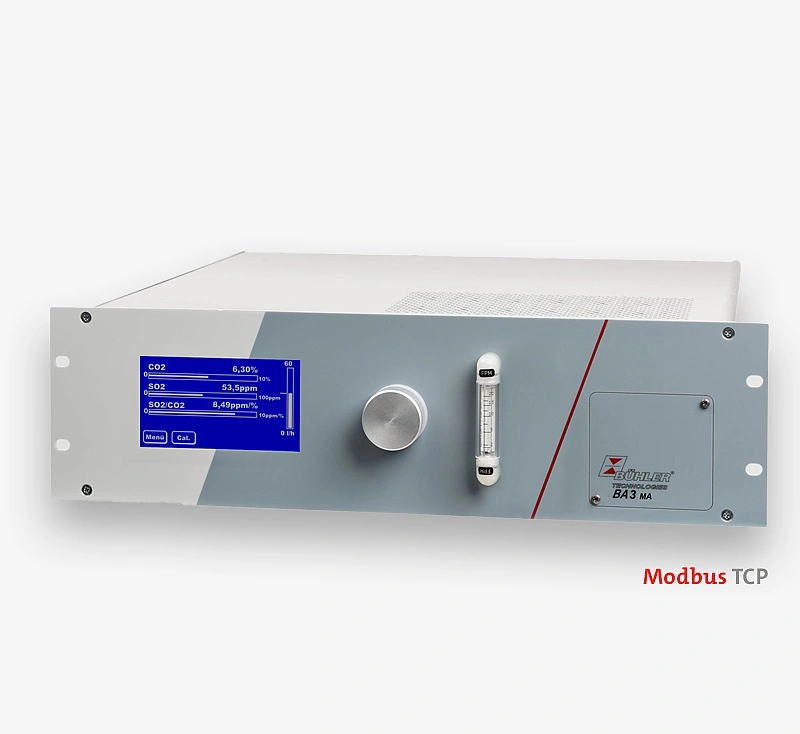

Gas Analyser for maritime emission monitoring BA 3 MA

Gas Analyser for maritime emission monitoring BA 3 MA

Gas Analyser for maritime emission monitoring BA 3 MA
  • MEPC 259(68) certified for measuring maritime emissions
  • EMC and vibration-protected sensors
  • Safe for use in ambient temperatures between 5 °C and 45 °C
  • Smallest measuring range SO2: 0 - 100 ppm, NDUV
  • Smallest measuring range CO2: 0 - 10 Vol.%, NDIR
  • SO2/CO2 quotient display and output [ppm/Vol.-%]
  • Modbus TCP and 4 – 20 mA output signals
  • Low T-Drift due to heated gas sensors
  • Pressure-compensated SO2 and CO2 measurement values
  • User-friendly touch screen with intuitive menu navigation
  • Optional: Internal sample gas pump and flow meter
  • Optional: Internal solenoid valves

Greenhouse gases and pollutants emitted into the atmospheres makes maritime a key contributor to worldwide emissions. Particularly CO2 and SO2 are responsible for ocean acidification, thus destroying this habitat. The BA 3 MA gas analyser is developed specifically for measuring these two components in the extreme environmental conditions of maritime applications.

The BA 3 MA is DNV certified (Statement of Compliance) as per regulation MEPC 259(68) and is therefore particularly optimised for monitoring emissions of maritime pollutant emission control system (SO2 scrubbers). SO2 traces are measured by NDUV spectroscopy, which is particularly insusceptible to interfering gas. Along with the vibration- protected mounting of the gas sensors therefore makes the device optimal for measuring minimal SO2 traces.
The standard pressure compensation and thermostatization of the gas sensors ensure high signal stability, even in highly fluctuating ambient temperatures. In addition to the SO2 and CO2 gas concentrations, this also shows the important SO2/CO2 quotient in the display and is output via 4 - 20 mA- and Modbus TCP output signals.
