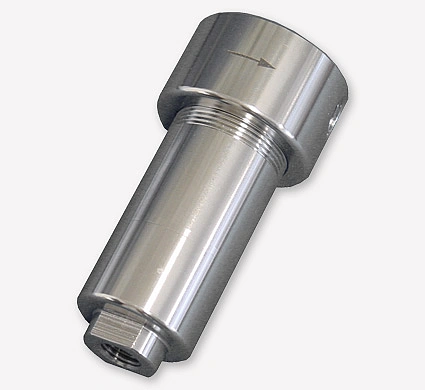

Coalescence Filter K-AGF-VA-350

Coalescence Filter K-AGF-VA-350

  • Very quick and easy filter changes without tools
  • Low dead volume
  • Variable wall mounting via mounting bracket
  • Ability to (auto) drain condensate via threaded connection (NPT 1/4") inside filter cover

In specific gas technology applications, high pressure keeps the gas inside the systems. The undesirable disturbance variables also include aerosols in the gas in these types of systems. The aqueous suspended particles can easily be removed from the gas by coagulation using special filter matrices.

During this process, the tiny aerosols accumulate on the fibres of the filter matrix through collision, forming drops increasing in size. Once large enough, the condensate which forms drains into the filter bowl and is then removed. Model K-AGF-VA-350 has a stainless steel housing for operating pressures up to 350 bar/5076 psi.
