Fine Mesh Filter AGF-VA-350 : Bühler Technologies GmbH

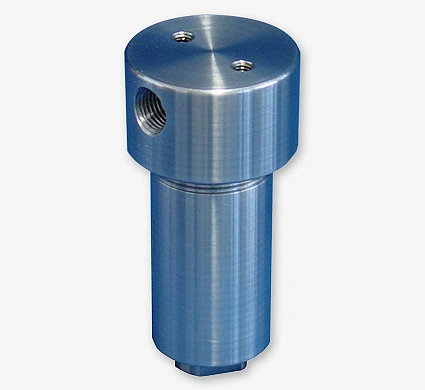

Fine Mesh Filter AGF-VA-350

Very quick and easy filter changes without tools
Low dead volume
Variable wall mounting via mounting bracket
Ability to (auto) drain condensate via threaded connection (NPT 1/4") inside filter cover

Even if the particular contaminant has already been removed at the extraction point inside the through effective particle filtration gas sampling probe, in long or branched sample gas line there is a risk of secondary contamination.

Additional filters are therefore often installed at the point where the sample gas enters the analysis system and also before delicate system components. The filter housings must be made of corrosion-resistant, non-absorbent materials, easy to install and easy to maintain. They should further be compatible with various filter elements. This particle filter with corrosion-resistant stainless steel housing is suitable for high pressure gas applications up to 350 bar/5076 psi.

4135G002	Fibreglass filter element, filter fineness 2µm, epoxy resin binder, øi=12,7 mm, L=57 mm, max. 150 °C
4135G005	Fibreglass filter element, filter fineness 5µm, epoxy resin binder, øi=12,7 mm, L=57 mm, max. 150 °C
4135G010	Fibreglass Filter element, filter fineness 10µm, epoxy resin binder, øi=12,7 mm, L=57 mm, max. 150 °C
