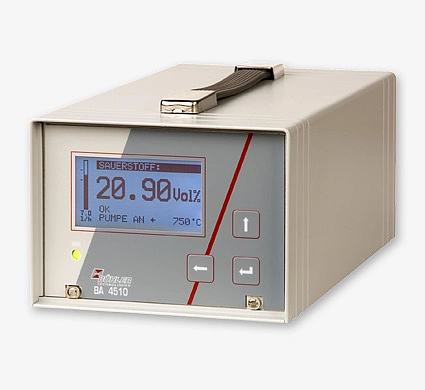

Portable O2 Analyser BA 4510

Portable O2 Analyser BA 4510

  • calibration- and virtually drift-free measuring cell
  • 4 - 20 mA output signal
  • RS 232 interface
  • internal, switchable pump
  • easy to navigate menu
  • programmable limits
  • no test gas required

The portable analyser BA 4510 is used to measure traces of oxygen in inert gas. At the core of this unit is a tried and tested, maintenance-free zirconium dioxide measuring cell. This oxygen-ion conductor combines the advantage of high selectivity with high mechanical stability and consistency.

As the oxygen content drops in inert gases, the voltage zirconium oxide cells supply increases, making it particularly easy to measure traces. An internal processor converts the measuring signal to oxygen concentration, displays it on the LCD screen, and can be output as an analogue current signal. An internal switchable gas pump provides the necessary flow rate if the primary pressure of the sample gas is too low. The unit is menu-driven using membrane keys at the front. A special version (BA 4510 KIZ) is available for measuring gases with flammable components.
