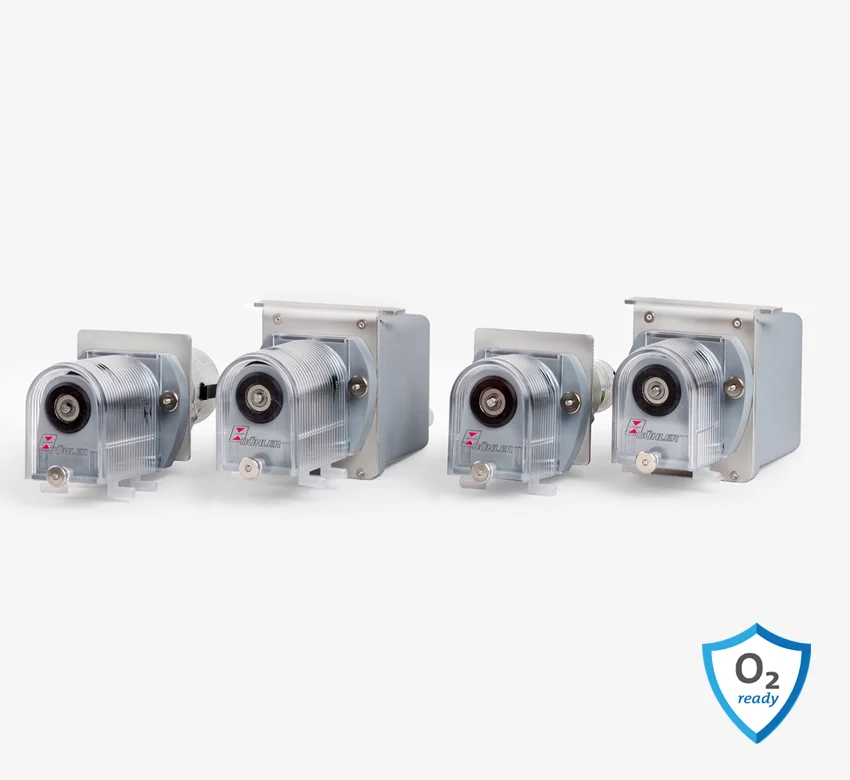

Peristaltic condensate and metering pumps CPsingle, CPdouble -O2

Peristaltic condensate and metering pumps CPsingle, CPdouble with hoses -O2

  • For applications with high-purity oxygen.
  • Materials in contact with media are suitability-tested for high O2 concentrations
  • Cleaning standard is based on EIGA Doc 33/18 as regards the absence of particles, oils and fats for hoses with the O2 version.
  • Built-in and housing version
  • Metering pumps with low flow rates
  • Easy to replace hoses
  • Separate installation possible
  • 115/230 V AC or 24 V DC

Condensate accumulates when conditioning gas in gas conditioning. It always accumulates when cooling moist sample gas. On one hand this may occur inadvertently if thermal bridges occur in the sample gas lines. On the other hand the deposit of moisture is necessary to protect the measuring cells in the analyser from damage and/ or stabilise measurements.

Since the sample gas is often conveyed through the analysis system with suction, the condensate must be pumped off to remove it. So-called peristaltic pumps are particularly suited for this purpose. They systemically protect the sample gas system from external air and based on the hose material used offer high resistance against the often times highly corrosive condensate.
The CPsingle and CPdouble pump series were developed specifically for these severe operating conditions.
For applications with high-purity oxygen, special cleaning processes are used to remove particles, oils and fats from parts coming into contact with media. The contamination limits are based on the internationally used and applicable guideline EIGA Doc 33/18 “Cleaning of Equipment for Oxygen Service”.
