Sample gas cooler RC 2.4 Rack

Sample gas cooler RC 2.4 Rack

[Translate to English:]
  • 19-inch housing as a slide-in unit for system cabinets or for wall mounting
  • Parallel cooling of up to 4 gas paths
  • Application-specific selection of heat exchangers: Stainless steel, PVDF or DURAN glass
  • High-power cooling with a nominal output of 860 kJ/h at 230 V and 720 kJ/h at 115 V
  • Future-proof and climate-friendly: Use of natural refrigerants instead of HFC refrigerants
  • Ambient temperature from +5 °C to +45 °C
  • Option: Signal output 4 - 20 mA for function and temperature monitoring
  • Option: Digital output (Modbus RTU) for device configuration and access to process and diagnostic data

Sample gas coolers are used in extractive gas analysis. The sample gas is taken from the process and may contain impurities such as particles or moisture that can damage the measuring cells or influence the measurement results. For this reason, the moist gas is cooled below the dew point in the sample gas cooler, causing the moisture to condense so it can be removed from the system.

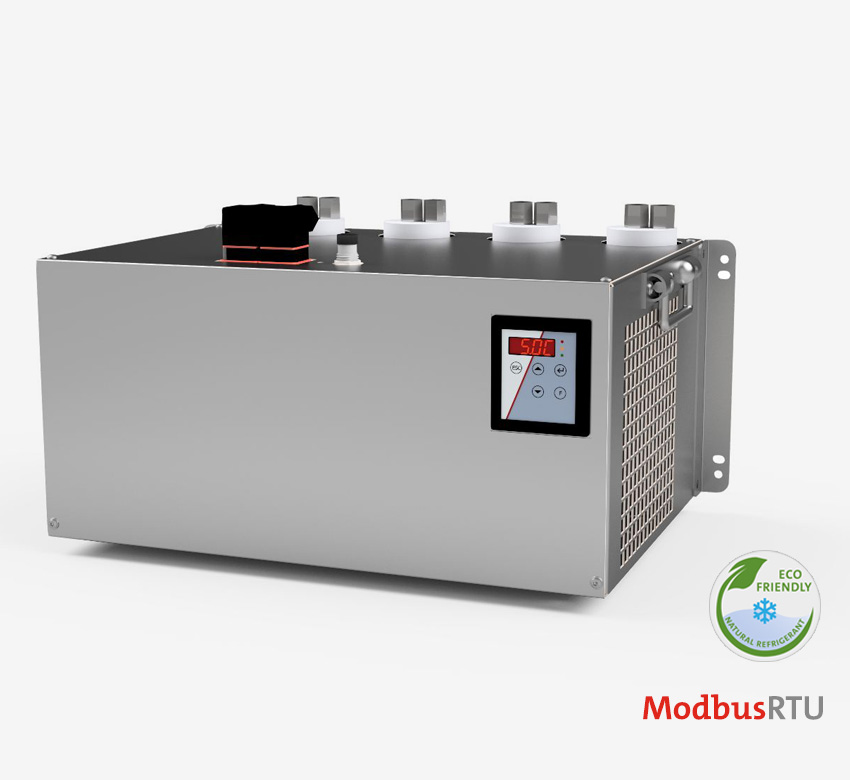

The RC 2.4 Rack is a compact 19-inch format compressor sample gas cooler, ideal for system cabinets. With the option of simultaneous cooling of four separate gas paths, the cooler offers a high degree of flexibility.

The natural refrigerant R600a meets the requirements of Regulation (EU) 2024/573 and is a very environmentally friendly solution thanks to the reduction in CO₂ emissions. At the same time, it ensures the future-proof operation of your systems that comply with legal requirements in the long term.
