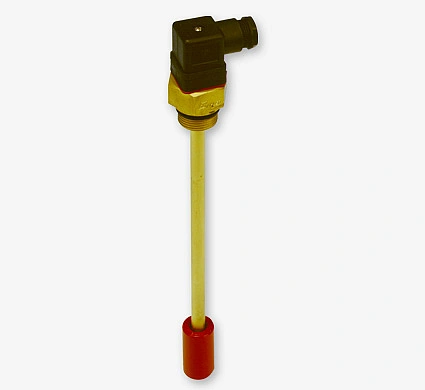

Level and temperature switch NT M...-Atex

Level and temperature switch NT M...-Atex

  • ATEX applications: Zone 2 (cat. 3G), simple electrical equipment per EN 60079-11
  • Level / temperature
  • Adjustable level contacts
  • Bistable = only one float
  • Particularly buoyant float
  • Connector as standard
  • Easy installation
  • Maintenance free

The NT M…-Atex is used to monitor the fluid level and temperature in simple hydraulic systems. This series consists of simple electrical equipment without a separate voltage source.

In the case of intrinsically safe connections as per EN 60079-14, the level switch can be used in Zone 2 (group IIC, device category 3G) explosive areas; this also applies to the inner zone of the tank. The NT M…-Atex can be used in temperature class T4 at an ambient temperature of -20 °C to +80 °C / -4 °F to +176 °F. .

Furthermore, this unit has a particularly buoyant float despite its small dimensions. The bistable reed contacts can be later adjusted.
