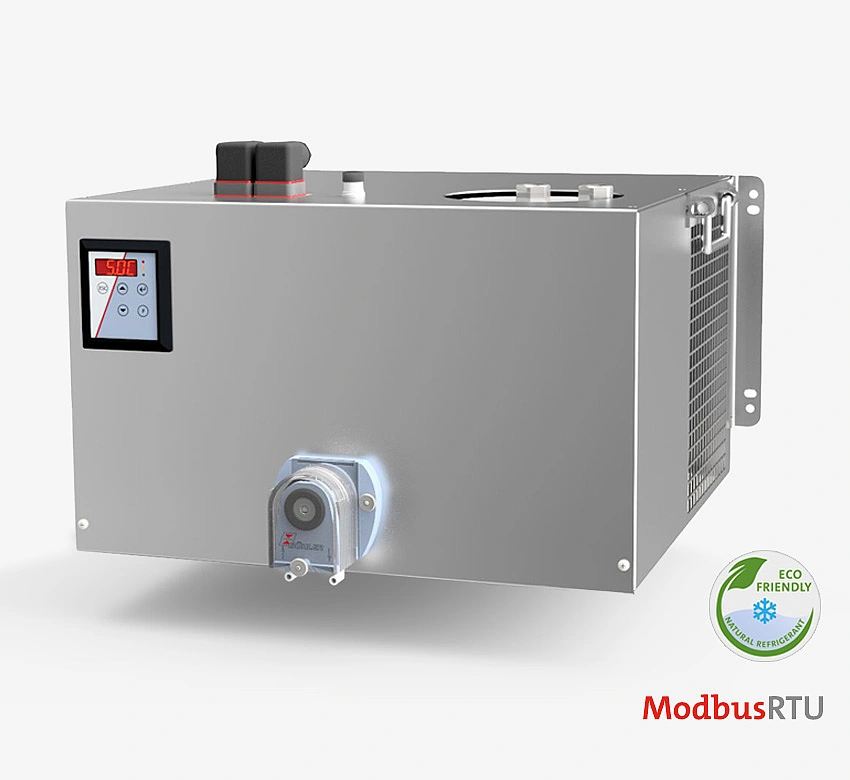

Sample gas cooler RC 3.1

Sample gas cooler RC 3.1

[Translate to English:]
  • High-performance cooler with a rated output of 1400 kJ/h
  • Accurate setting of the gas outlet dew point in a range from +2 °C to +20 °C with a constant dew point stability of ± 0.2 K
  • Adjustable tolerance ranges (alarm thresholds) for the setpoint temperature of the measuring gas cooler
  • Special stainless steel heat exchangers, also available with glass coating for corrosive gases
  • Ambient temperature from +5 °C to +50 °C
  • Future-proof and climate-friendly: Use of natural refrigerants instead of HFC refrigerants
  • Option: Signal output 4 - 20 mA for function and temperature monitoring
  • Option: Digital output (Modbus RTU) for device configuration and access to process and diagnostic data

Sample gas coolers are used in extractive gas analysis. The sample gas is taken from the process and may contain impurities such as particles or moisture that can damage the measuring cells or influence the measurement results. For this reason, the moist gas is cooled below the dew point in the sample gas cooler, causing the moisture to condense so it can be removed from the system.

The RC 3.1 is a compressor high performance cooler with a special heat exchanger. Suitable for wall-mounting or desktop operation.
The natural refrigerant R600a meets the requirements of EU Regulation (EU) 2024/573 and is a very environmentally friendly solution thanks to the reduction in CO₂ emissions. At the same time, it ensures the future-proof operation of your systems that comply with legal requirements in the long term.
