Sample gas cooler RC 1.2 Rack

Sample gas cooler RC 1.2 Rack

[Translate to English:]
  • 19-inch housing as a slide-in unit for system cabinets or for wall mounting
  • Simultaneous cooling of 2 gas paths possible
  • Efficient cooling with a nominal output of 320 kJ/h
  • Accurate setting of the gas outlet dew point in a range from +3 °C to +20 °C with a constant dew point stability of ± 0.1 K
  • Adjustable tolerance ranges (alarm thresholds) for the
  • setpoint temperature of the measuring gas cooler
  • Ambient temperature from +5 °C to +50 °C
  • Future-proof and climate-friendly: Use of natural refrigerants instead of HFC refrigerants
  • Modular: Moisture detector, filter and condensate pump
  • Option: Signal output 4 - 20 mA for function and temperature monitoring
  • Option: Digital output (Modbus RTU) for device configuration and access to process and diagnostic data

Sample gas coolers are used in extractive gas analysis. The sample gas is taken from the process and may contain impurities such as particles or moisture that can damage the measuring cells or influence the measurement results. For this reason, the moist gas is cooled below the dew point in the sample gas cooler, causing the moisture to condense so it can be removed from the system.

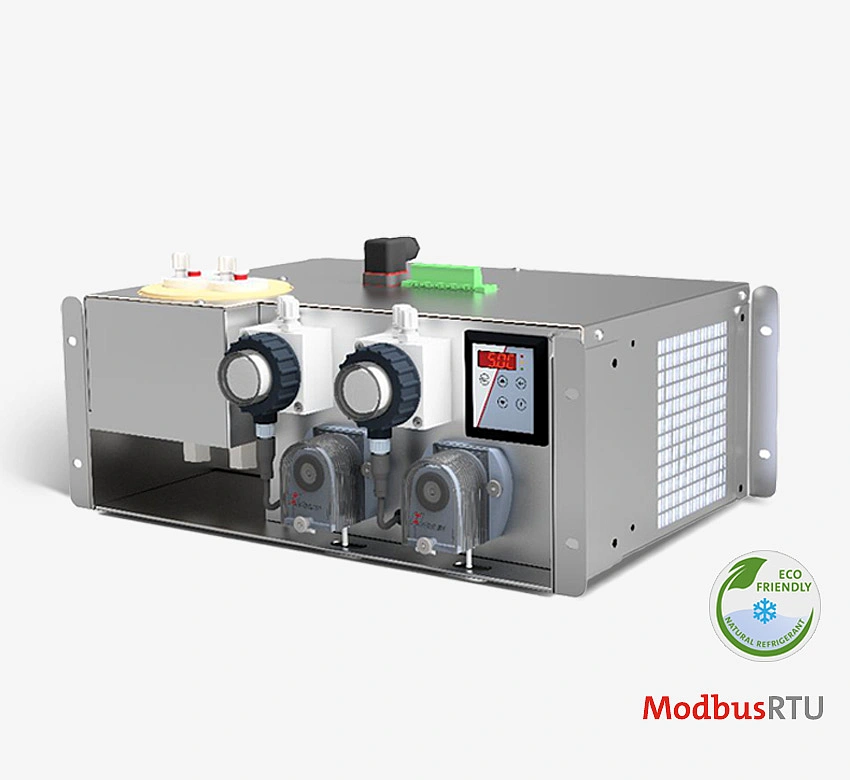

The RC 1.2 Rack is a compact 19-inch format compressor sample gas cooler, ideal for system cabinets. With the option of simultaneous cooling of two gas paths, the cooler offers a high degree of flexibility. Thanks to its modular design, the RC 1.2 Rack can be individually equipped with integrated humidity sensors, filters and condensate pumps to meet your specific requirements.
The natural refrigerant R600a meets the requirements of EU Regulation (EU) 2024/573 and is a very environmentally friendly solution thanks to the reduction in CO₂ emissions. At the same time, it ensures the future-proof operation of your systems that comply with legal requirements in the long term.
