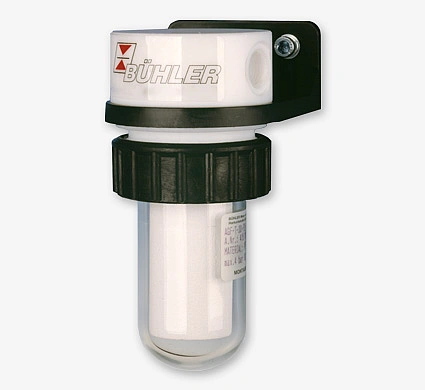

Fine mesh filter AGF-T-30
- Full PTFE housing top
- Maximum chemical resistance, for use in highly aggressive mediums
- Filter fineness of 2 μm or 25 μm with sintered PTFE elements
- No absorption of trace gasses
- Quick response time in systems due to low dead volume
- Variable wall mount
Even if the particular contaminant has already been removed at the extraction point through effective particle filtration inside the gas sampling probe, in long or branched sample gas line there is a risk of secondary contamination. Additional filters are therefore often installed at the point where the sample gas enters the analysis system and also before delicate system components.
The filter housings must be made of corrosion-resistant, non-absorbent materials, easy to install and easy to maintain. They should further be compatible with various filter elements.
The AGF-T-30 series has a PTFE and glass housing. The filter head has an additional connection for installing a moisture detector. A variety of materials is available based on the application.
- DocumentsTo download, simply select the respective documents and click "My Downloads" above.
Data sheets
Quick Guide
Detailed operating instructions
- Spare Parts
41010010 Filter element S2, material: Fibreglass, 2 µm, 5-Pack (replaces 4101001) 4101002 Filter element S2, material: Fibreglass, 2 µm, 25-Pack 41010140 Filter element S2-KU, material: Fibreglass, 2 µm, 5-Pack (replaces 4101014) 41010150 Filter element 2 µm, S 2 - KU 25-Pack 41030050 Filter element F2, material: PTFE, 2 µm, 5-Pack (replaces 4103005) 41020130 Filter element F25, material: PTFE, 25 µm, 5-Pack (replaces 4102013) 41020050 Filter element F2-L, material: PTFE, 2 µm, 2-Pack 41010120 Filter element F25-L, material: PTFE, 25 µm, 2-Pack - Contact Person
