Fine Mesh Filter AGF-PV-30 : Bühler Technologies GmbH

Fine mesh filter AGF-PV-30

Fermeture rapide Unique Bühler
Matériau du carter de filtre : PVDF, verre
Différents éléments filtrants
Faibles volumes morts
Raccordement by-pass pour capteur d'humidité
Utilisé dans une unité de traitement homologuée DNV
Respect des exigences selon MARPOL MEPC.259(68) de l'IMO certifié
Design particulier pour une utilisation dans des environnements à fortes vibration

Even if the particular contaminant has already been removed at the extraction point through effective particle filtration inside the gas sampling probe, in long or branched sample gas line there is a risk of secondary contamination.

Additional filters are therefore often installed at the point where the sample gas enters the analysis system and also before delicate system components. The filter housings must be made of corrosion-resistant, non-absorbent materials, easy to install and easy to maintain. They should further be compatible with various filter elements.

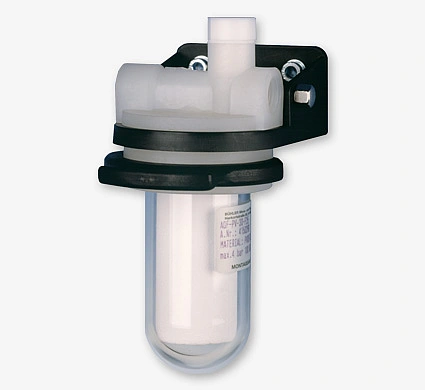

The AGF-PV-30 series features a PVDF and glass housing and is equipped with the Bühler Unique quick-release fastener. The filter head has an additional connection for installing a moisture detector. A variety of materials is available based on the application.

41010010	Filter element S2, material: Fibreglass, 2 µm, 5-Pack (replaces 4101001)
4101002	Filter element S2, material: Fibreglass, 2 µm, 25-Pack
41030050	Filter element F2, material: PTFE, 2 µm, 5-Pack (replaces 4103005)
41020050	Filter element F2-L, material: PTFE, 2 µm, 2-Pack
41020130	Filter element F25, material: PTFE, 25 µm, 5-Pack (replaces 4102013)
41010120	Filter element F25-L, material: PTFE, 25 µm, 2-Pack
41010130	Filter element for AGF-PV-30, polycarbonate active carbon element, type PEAC 12-57, active carbon monoblock with sintered-on PE police filter layer, 3/8” UNF connection, filter length 64 mm/diameter 23 mm, individually shrink-wrapped elements
